Overview

Description:

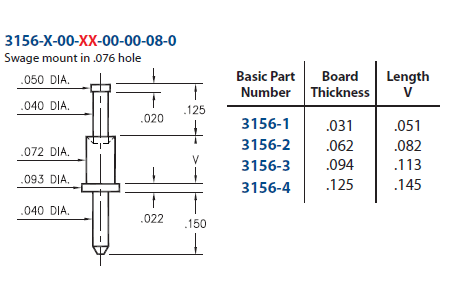

Turret Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole:  .076" (1,930mm)
Tail Type: Soldertail
Tail Diameter: .040" (1,016mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .044" (1,118mm)

Product Family:

Printed Circuit Board (PCB) Pin


Mates With:

Find mating receptacles

Recommended Tooling:

900-XX-XXX-00-415003

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

Overview

Description:

Turret Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole:  .076" (1,930mm)
Tail Type: Soldertail
Tail Diameter: .040" (1,016mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .044" (1,118mm)

Product Family:

Printed Circuit Board (PCB) Pin


Mates With:

Find mating receptacles

Recommended Tooling:

900-XX-XXX-00-415003

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C
