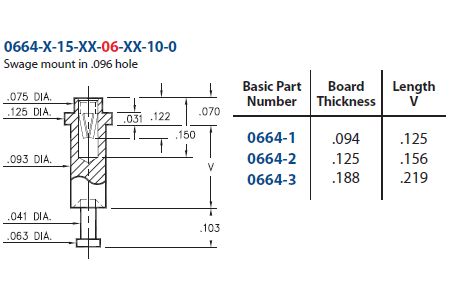

0664 Swage Mount Receptacle

0664 Swage Mount Receptacle

Overview

Description:

Swage Mount Receptacle
Accepts .022"-.032" (0,559-0,813mm) diameter leads.
Mounting Feature:
Swage Mount
Mounting Hole:  .096" (2,438mm)
Tail Type: Turret
Tail Diameter: .041" (1,041mm)

Product Family:

Pin Receptacle

Mates With:

Find mating pins

Recommended Tooling:

900-XX-XXX-00-420002

Mechanical life (Durability):
1,000 Cycles Minimum
Maximum Current:
16A @ 30⁰ C Temp. Rise
Maximum Derated Current: 12.8A
Contact Resistance: 10 mΩ Max
Operating Temperature Range:
-55/+125° C
Vibration:
No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
Shock:
No Elect. Discontinuity > 1μs @ 50g

0664 Swage Mount Receptacle

Overview

Description:

Swage Mount Receptacle
Accepts .022"-.032" (0,559-0,813mm) diameter leads.
Mounting Feature:
Swage Mount
Mounting Hole:  .096" (2,438mm)
Tail Type: Turret
Tail Diameter: .041" (1,041mm)

Product Family:

Pin Receptacle

Mates With:

Find mating pins

Recommended Tooling:

900-XX-XXX-00-420002

Mechanical life (Durability):
1,000 Cycles Minimum
Maximum Current:
16A @ 30⁰ C Temp. Rise
Maximum Derated Current: 12.8A
Contact Resistance: 10 mΩ Max
Operating Temperature Range:
-55/+125° C
Vibration:
No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
Shock:
No Elect. Discontinuity > 1μs @ 50g
