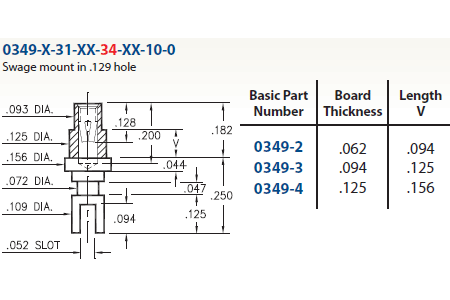

0349 Swage Mount Receptacle

0349 Swage Mount Receptacle

Overview

Description:

Swage Mount Receptacle
Accepts .032"-.046" (0,813-1,168mm) diameter leads.
Mounting Feature:
Swage Mount
Mounting Hole:  .129" (3,277mm)
Tail Type: None

Product Family:

Pin Receptacle

Mates With:

Find mating pins

Mechanical life (Durability):
1,000 Cycles Minimum
Maximum Current:
17A @ 30⁰ C Temp. Rise
Maximum Derated Current: 13.6A
Contact Resistance: 10 mΩ Max
Operating Temperature Range:
-55/+125° C
Vibration:
No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
Shock:
No Elect. Discontinuity > 1μs @ 50g

0349 Swage Mount Receptacle

Overview

Description:

Swage Mount Receptacle
Accepts .032"-.046" (0,813-1,168mm) diameter leads.
Mounting Feature:
Swage Mount
Mounting Hole:  .129" (3,277mm)
Tail Type: None

Product Family:

Pin Receptacle

Mates With:

Find mating pins

Mechanical life (Durability):
1,000 Cycles Minimum
Maximum Current:
17A @ 30⁰ C Temp. Rise
Maximum Derated Current: 13.6A
Contact Resistance: 10 mΩ Max
Operating Temperature Range:
-55/+125° C
Vibration:
No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
Shock:
No Elect. Discontinuity > 1μs @ 50g
