Mill-Max Offers Rugged, Higher Current Spring Pins

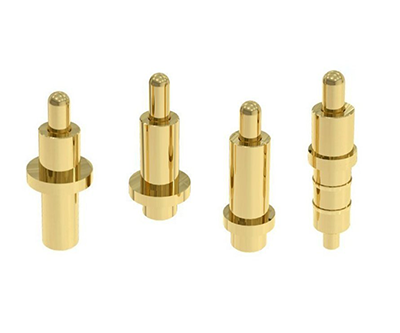

Rugged, High Current Spring-Loaded Pogo Pins

Mill-Max now offers a series of rugged spring pins capable of carrying 9 amps continuous current at a low 10° C temperature rise. The Mill-Max high current spring-loaded pins are the perfect solution for rugged applications and for use in circuits operating at currents above signal level.

These pogo style contacts are characterized by a greater mass and surface area which provides a lower resistance electrical path than miniature spring-loaded pogo pins. Because they are designed and built with the same precision of our miniature spring-loaded pins they exhibit excellent signal integrity in shock and vibration environments.

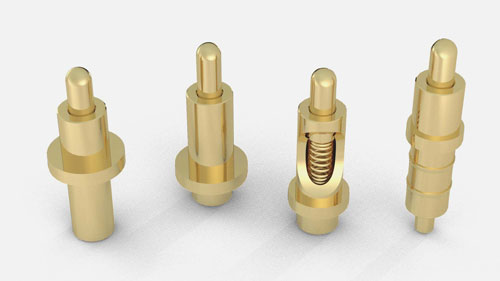

Large scale spring pins feature a gold plated stainless steel spring, a larger, up to .092" (2,29 mm) diameter solid plunger and thick wall construction to withstand the rigors of demanding applications. The generous, up to .090" (2,28 mm) maximum stroke is excellent for applications where stack up tolerances are great. Applications include board stacking, docking stations, cable assemblies, quick connects and anywhere there is a blind mate situation.

Rated at 100,000 to 1,000,000 cycles minimum, the Mill-Max 08XX series spring pins are the best choice for higher-current, high reliability spring pin requirements.

Need technical help or looking for a custom design? Use the form below to contact Mill-Max Technical Services.
