.050" (1,27mm) Grid SMT Board to Board Interconnects

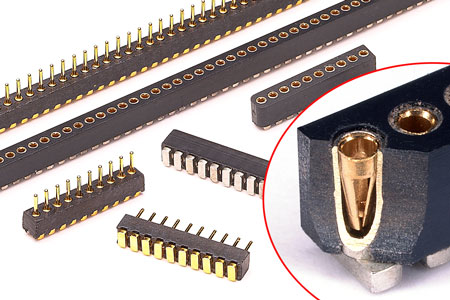

Mill-Max now offers a miniature "self-standing" single row connector pair for surface mount applications.

"Self-standing" socket and pin header design minimizes the printed circuit board footprint, i.e.: pad lengths are less than half of those required by traditional "gull wing" connector designs.

Height of mated pair is only .218" (5,54mm.)

Available in lengths from 2 to 50 pins.

High temp. thermoplastic insulators are suitable for all forms of reflow soldering including "lead-free."

Reliable performance is assured through the use of Mill-Max's precision-machined pin and beryllium copper contact technology.

Typical applications for this product would be as a board-to-board mezzanine connector in hand-held instruments. It could be used to simplify final assembly or to permit future upgrade of the instrument.

For more information use the links to the right for additional product details, to order a sample, to find related products, or contact Mill-Max Technical Services for custom design options.
