The Contact Clip, the Heart of the Mill-Max Receptacle

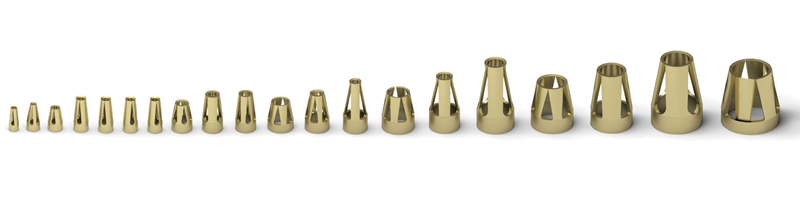

Range of Mill-Max Contacts
30 Contact Leaded

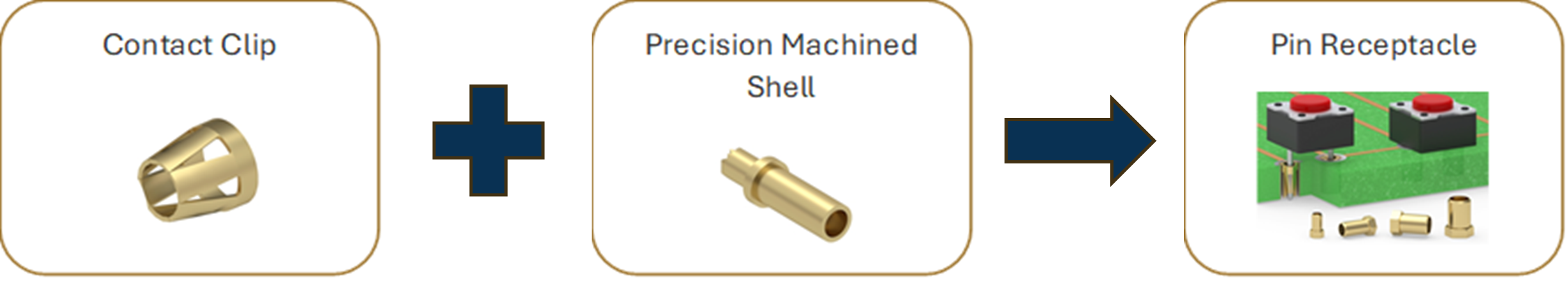

Inside every Mill-Max receptacle is a contact clip. A contact clip is a conductive, multi-finger, progressive die stamping designed to engage with a range of mating pins to form a reliable electrical connection. The ability for the contact to accommodate different size mating leads and apply force to them is due to the superior spring characteristics of beryllium copper and beryllium nickel. The contact fingers, also referred to as tines, are the stamped beams which open, envelop and apply force to the mated pin. The finger tips are typically coined to maximize the surface area in contact with the mated pin. These fingers allow the contact clip to engage, score and apply holding force to the mated pin, forming an electrical and gas tight connection at 3, 4 or 6 points of contact, depending on the selected contact.

Mill-Max currently offers 40 styles of contacts. This extensive family of contacts will accept round pins ranging from .008" to .102" diameter, as well as rectangular component leads and square wraposts, where the effective diameter is taken as the diagonal dimension of the lead. Receptacles with contact clips inserted in them are capable of 1,000 minimum insertion/extraction cycles for a broad range of applications. Mating pin size, shape and finish, along with application specific variables, will affect the life of a contact.

Many contacts are interchangeable within a given receptacle shell, provided the contacts have the same group designation. Standard receptacles found in the catalog and on the website can be easily assembled with alternate contacts to suit special applications, for example: low insertion force or high operating temperature. A convenient contact selector chart has been organized by alternate contact groupings to help assist you in choosing the right contact for your application.

Contact GroupContact NumberAccepts
Minimum Pin
Diameter (Inches)
Maximum Pin
Diameter (Inches)
Length (Inches)
Number of
Current Rating (For 10°C )**
None04. Amps
None10. Amps
A09. Amps
A11. Amps
A21. Amps
A31. Amps
A05. Amps
A25. Amps
B *** Amps
B *** Amps
C *** Amps
C *** Amps
C *** Amps
C *** Amps
C *** Amps
K15. Amps
K19. Amps
D06. Amps
D26. Amps
D16. Amps
D47. Amps
D56. Amps
L18. Amps
L58. Amps
E36. Amps
E34. Amps
E49. Amps
E24. Amps
F02. Amps
F28. Amps
J42. Amps
J03. Amps
G23. Amps
G13. Amps
G33. Amps
H07. Amps
H27. Amps
H14. Amps
None08. Amps
None48.037.043TBD.0924BeCu20 Amps


*The standard material  of contact clips is beryllium copper 172 which is suitable for applications operating in a constant temperature environment under 150° C.  For applications operating in a temperature over 150° C we offer select clips in beryllium nickel.  Both materials are heat treated to achieve optimal spring characteristics & durability.

**The current rating of a contact clip is a function of its material thickness and pin engagement surface area. Note, this current rating (for a 10° C temperature rise above ambient) is conservative since it rates an individual pin/receptacle pair in the free air. For all practical applications, the current rating will be higher because of the heat sinking ability of wires and circuit traces attached to the pin and receptacles and will depend on the specific application.

*** Group B and C contacts may be interchanged.  However, receptacle shell hole depth must be considered when replacing a group B contact with a group C as the group C contacts are longer.  Contact an Application Engineer to determine if the exchange will work.

For more information on contact range, and proper design of pin length and diameter, read on for more.
