Overview

Description:

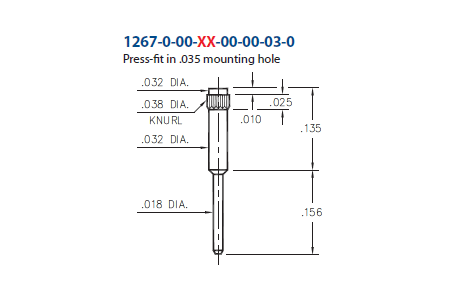

Press-fit PCB Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:  .035" (0,889mm)
Tail Type: Soldertail
Tail Diameter: .018" (0,457mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .022" (0,559mm)

Product Family:

Printed Circuit Board (PCB) Pin


Mates With:

Find mating receptacles

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

Overview

Description:

Press-fit PCB Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:  .035" (0,889mm)
Tail Type: Soldertail
Tail Diameter: .018" (0,457mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .022" (0,559mm)

Product Family:

Printed Circuit Board (PCB) Pin


Mates With:

Find mating receptacles

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C
