Overview

Description:

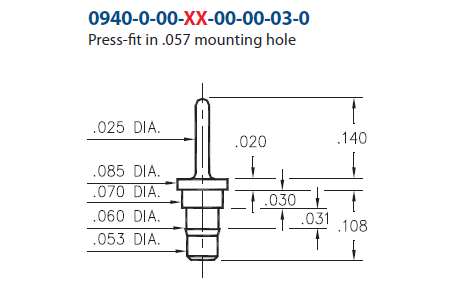

Press-fit PCB Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:  .057" (1,448mm)
Tail Type: Soldertail
Tail Diameter: .025" (0,635mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .029" (0,737mm)

Product Family:

Printed Circuit Board (PCB) Pin


Mates With:

Find mating receptacles

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C
