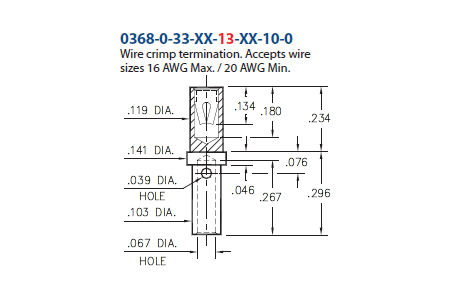

0368 Wire Termination Receptacle - Crimp Type

0368 Wire Termination Receptacle - Crimp Type

Overview

Description:

Wire Termination Receptacle - Crimp Type
Accepts .048"-.064" (1,219-1,626mm) diameter leads.
Wire Termination:
Crimp 16-20 AWG
Mounting Feature:
Wire Mount
Tail Type: Crimp

Product Family:

Pin Receptacle

Mates With:

Find mating pins

Recommended Tooling:

Crimp Tool, AF8 (DMC)
Positioner, TH34 (DMC)

Mechanical life (Durability):
1,000 Cycles Minimum
Maximum Current:
19A @ 30⁰ C Temp. Rise
Maximum Derated Current: 15.2A
Contact Resistance: 10 mΩ Max
Operating Temperature Range:
-55/+125° C
Vibration:
No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
Shock:
No Elect. Discontinuity > 1μs @ 50g

0368 Wire Termination Receptacle - Crimp Type

Overview

Description:

Wire Termination Receptacle - Crimp Type
Accepts .048"-.064" (1,219-1,626mm) diameter leads.
Wire Termination:
Crimp 16-20 AWG
Mounting Feature:
Wire Mount
Tail Type: Crimp

Product Family:

Pin Receptacle

Mates With:

Find mating pins

Recommended Tooling:

Crimp Tool, AF8 (DMC)
Positioner, TH34 (DMC)

Mechanical life (Durability):
1,000 Cycles Minimum
Maximum Current:
19A @ 30⁰ C Temp. Rise
Maximum Derated Current: 15.2A
Contact Resistance: 10 mΩ Max
Operating Temperature Range:
-55/+125° C
Vibration:
No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
Shock:
No Elect. Discontinuity > 1μs @ 50g
