Mill-Max Rolls Out Omniball® Spring-Loaded Contacts

Omniball® Sliding Contacts

Spring-loaded pins specifically designed for sliding and rotational connections

The unique Omniball® spring-loaded contact (patent pending) features a rolling ball interface, enabling mating components to engage in lateral, rotational and angular alignments while providing optimal electrical, mechanical and structural reliability.

Omniball Patent

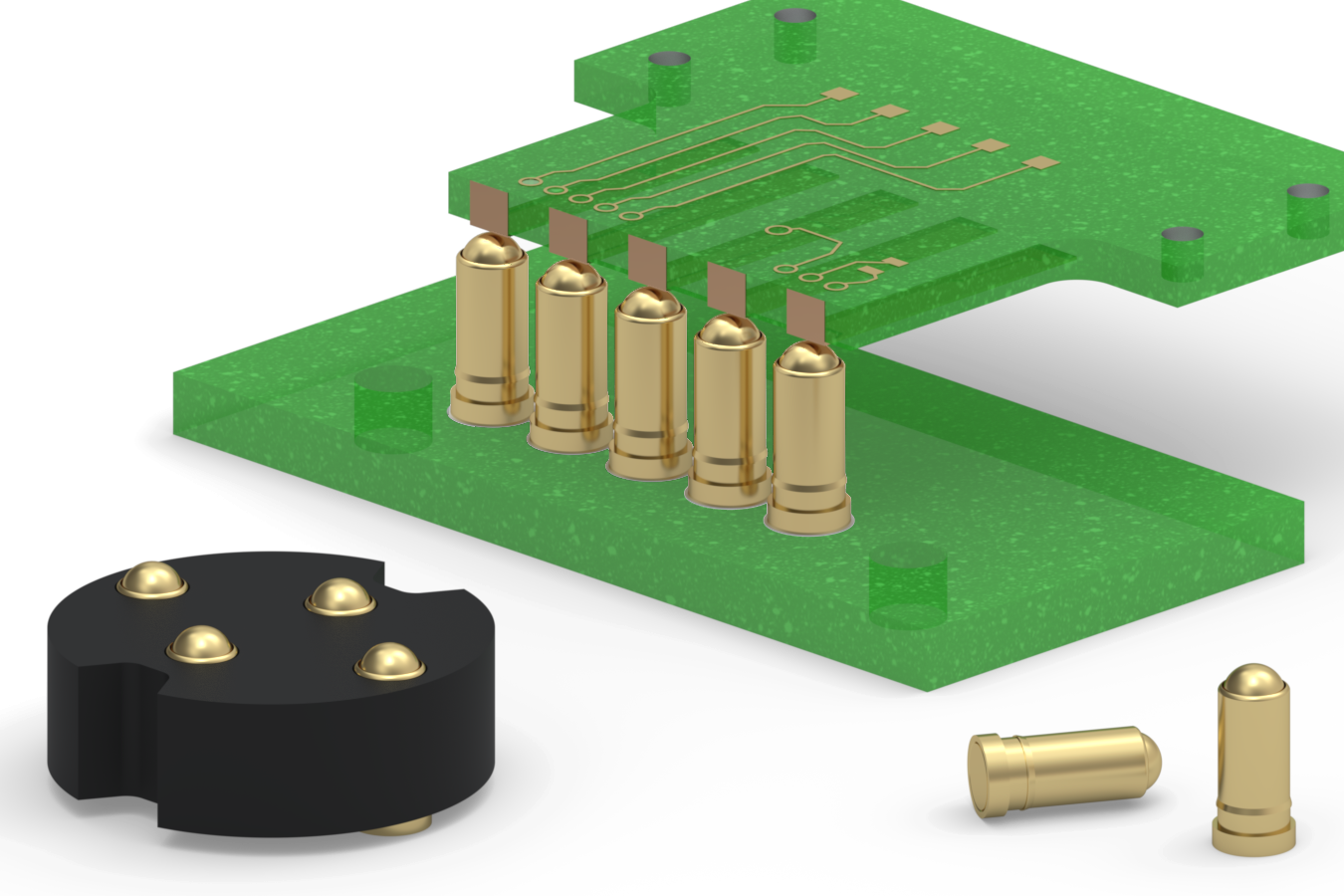

The Omniball® contact (0945-0-15-20-09-14-11-0) is a spring-loaded pin in which the traditional plunger has been replaced by a gold plated ball.  It is designed to simplify and improve the connections made between components which are mated together in a sliding or rotational motion rather than in an axial or vertical orientation.  When engaged, the ball compresses and rolls, allowing the mating surfaces to make contact and then easily slide parallel to each other while spring force acts to ensure consistent electrical contact is maintained. This rolling action alleviates the concerns of connector damage such as binding, premature wearing and structural failure that may occur when using traditional plunger style spring pins in these types of applications.

Features of the Omniball® contact include: .030” (.762 mm) maximum stroke; an overall height of .266” (6.76 mm); gold plating on all components; surface mount termination.  These spring-loaded pins are durable, they have been tested to 1,000,000 compression and rolling cycles at half stroke while still meeting specifications for contact resistance of 20m-ohms max., current rating of 5.5 amps and spring force of 55 grams at mid stroke (.015”, .381 mm).

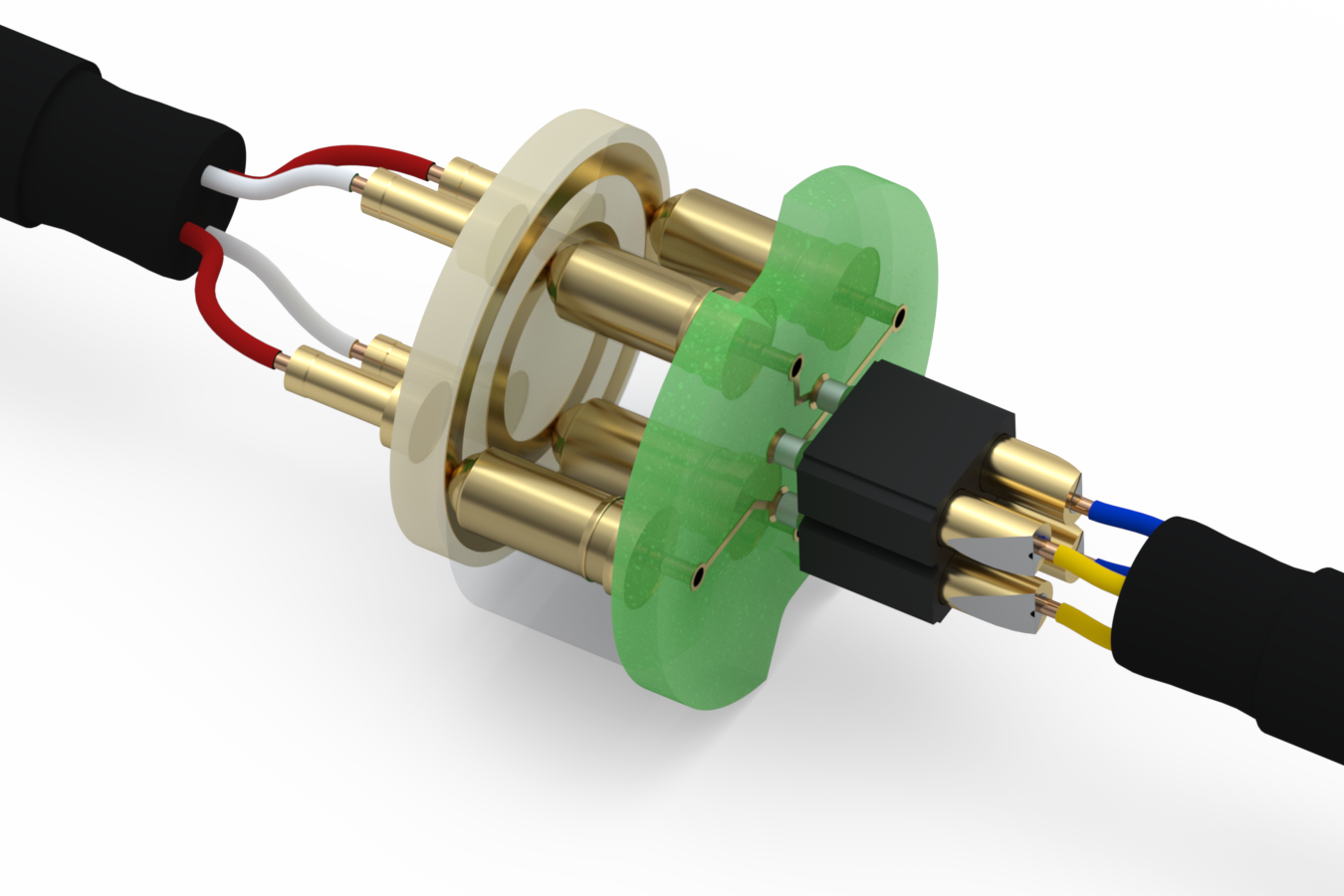

Omniball Circular Application

Omniball® contacts are an excellent choice for any application that involves sliding or rotating connections, such as: “twist & lock” cable connectors; smart lens camera connectors; rugged and IP rated connectors including quarter turn and threaded; as well as docking stations, quick connects and blind mating applications.  These unique contacts are available as individual pins and in a 4-pin circular connector which is offered in tubes or in tape & reel packaging. The 4-pin connector is especially well suited for round cable connector applications.

Need technical help or looking for a custom design? Use the form below to contact Mill-Max Technical Services.
