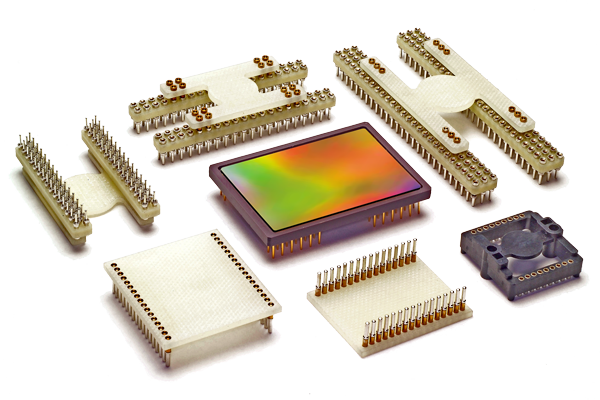

Image Sensor Socket Solutions for CCD & CMOS Imagers

Mill-Max offers a comprehensive range of solutions for Socketing CCD & CMOS Imagers with leaded (pinned) packages.


• Through-Hole and SMT sockets with pin spacings on .100", 2mm, .070", .050", 1mm, or 0.8mm grids.
• Through-Hole sockets available with solder preforms for intrusive reflow soldering.
• Molded high temperature or machined FR-4 insulators.
• Receptacle carriers that eliminate the socket insulator for extremely low profile applications.
• Pins are precision-machined copper alloy and incorporate beryllium copper spring contact. Heat treated BeCu is the best electrical spring contact material to ensure security of the imager while maintaining its pluggability.
• Available with RoHS compliant materials.

Need technical help or looking for a custom design? Use the form below to contact Mill-Max Technical Services.
