Horizontal Mount Pin Connectors, used for Right Angle Interconnects

Horizontal Mount Pin receptacles are individual component lead (discrete) sockets primarily used for plugging and unplugging of components on pc boards. They are made by press-fitting a pre-tooled “multi-finger” contact into a precision machined shell.

Surface mount receptacles can be supplied on tape per EIA-481 for automated assembly with industry standard “pick and place” machines. All receptacles utilize “multi-finger” beryllium copper inner contacts renowned for their greater compliancy and proven reliability.

Receptacles are available with various plating combinations: gold or tin contact and shell, or the economy of selective plating with a gold contact in a tin shell.

Designed for automated surface mount assembly

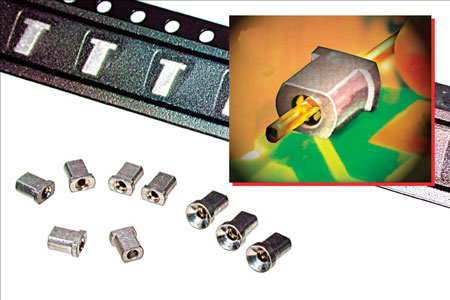

Surface mount receptacles are discrete sockets that permit leaded components to be plugged into SMT circuits. Their versatility can be applied to applications such as edge card connectors and PDAs.

Automated placement. Supplied on tape per EIA-481 for assembly with industry standard “pick and place” equipment.
Reliable contact design. Multi-finger beryllium copper inner contacts provide compliancy and proven reliability.
Broad lead compatibility. Available contact types accept round pins from .015” through .060” across the listed surface mount series.
Plating options. Gold or tin contact and shell combinations are available, including selective plating with a gold contact in a tin shell.

Specifications

Specification	Value
Shell material	Brass Alloy 360, 1/2 hard
Contact material	Beryllium Copper Alloy 172, HT
3907, contact #30	For Ø.015” to .025” pins; 12mm carrier tape; 4,000 per 13” reel or 1,000 per 7” reel
5739, contact #12	For Ø.015” to .022” pins; 16mm carrier tape; 3,000 per 13” reel only
8806, contact #47	For Ø.025” to .037” pins; 12mm carrier tape; 4,000 per 13” reel or 1,000 per 7” reel
6628, contact #18	For Ø.037” to .043” pins; 12mm carrier tape; 3,700 per 13” reel or 900 per 7” reel
8206, contact #34	For Ø.032” to .046” pins; not available on tape and reel
4064, contact #03	For Ø.040” to .060” pins; 16mm carrier tape; 2,400 per 13” reel only
Dimensional tolerances	Lengths ±.005”; diameters ±.002”; angles ±2°

Product configuration

Part Number	Description	Resources
3907-0-18-80-30-27-10-0	Surface mount pin receptacle with tin-plated shell and gold-plated contact for Ø.015” to .025” pins	Product Details 3D Model Check Stock
5739-0-18-80-12-27-10-0	Surface mount pin receptacle, contact #12, for Ø.015” to .022” pins	Product Details 3D Model Check Stock
8806-0-18-80-47-27-40-0	Surface mount pin receptacle, contact #47, for Ø.025” to .037” pins	Product Details 3D Model Check Stock
6628-0-18-80-18-27-10-0	Surface mount pin receptacle, contact #18, for Ø.037” to .043” pins	Product Details 3D Model Check Stock
8206-0-15-80-34-27-40-0	Surface mount pin receptacle, contact #34, for Ø.032” to .046” pins; not available on tape and reel	Product Details 3D Model Check Stock
4064-0-18-80-03-27-40-0	Surface mount pin receptacle, contact #03, for Ø.040” to .060” pins	Product Details 3D Model Check Stock

Find Additional Surface Mount Receptacles

Need technical help or a custom design?

Use the form below to contact Mill-Max Technical Services.

This form could not be loaded.

It requires JavaScript, which appears to be turned off or blocked in this browser. Enable JavaScript and reload the page to contact Mill-Max Technical Services.

Published Date

January 1st, 2000

Product Family

Suggested Industries

PDF Documents

Videos

Pin Receptacles Video

As a product design engineer, you know that connectors play a critical role in the electrical system of any product you design. It is not the place to take shortcuts, and a good connector can help avoid costly repairs and recalls down the road.

When you design your next product consider the Mill-Max receptacle first. The quality and reliability of our two-piece construction delivers maximum performance and durability in every application, including challenging or rugged environments.

Our receptacles are precision-machined for ultimate reliability of critical components across a wide variety of industries; including aerospace, military, medical, just about anywhere product failure is not an option.

The Mill-Max two-piece receptacle design allows for the widest mating pin acceptance range, the largest variety of shapes, sizes and materials, and multiple contact points to ensure a dependable connection every time.

Pin receptacles are typically the backbone of any interconnect system. So, why settle for anything less than the maximum in performance, reliability, and flexibility. The predictable quality of a Mill-Max interconnect can play a fundamental role in determining your products performance.

With almost 45 years of experience working with suppliers all over the world, consider specifying Mill-Max receptacles into your design, sooner rather than later, and ensure the optimal solution for the unique requirements of your application.
