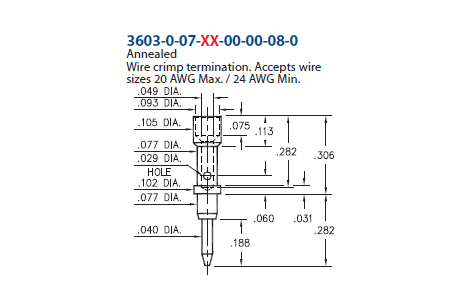

3603 Crimp Terminal Pin

3603 Crimp Terminal Pin

Overview

Description:

Crimp Terminal Pin
Wire Termination:
Crimp 20-24 AWG
Mounting Feature:
Through Hole Wire Mount
Mounting Hole:  .044" (1,118mm)
Tail Type: Soldertail
Tail Diameter: .040" (1,016mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .044" (1,118mm)

Product Family:

Printed Circuit Board (PCB) Pin

Mates With:

Find mating receptacles

Recommended Tooling:

Crimp Tool, AF8 (DMC)
Positioner, TH535 (DMC)

Maximum Current:
Application Specific
Operating Temperature Range:
- 55/+125° C

3603 Crimp Terminal Pin

Overview

Description:

Crimp Terminal Pin
Wire Termination:
Crimp 20-24 AWG
Mounting Feature:
Through Hole Wire Mount
Mounting Hole:  .044" (1,118mm)
Tail Type: Soldertail
Tail Diameter: .040" (1,016mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .044" (1,118mm)

Product Family:

Printed Circuit Board (PCB) Pin

Mates With:

Find mating receptacles

Recommended Tooling:

Crimp Tool, AF8 (DMC)
Positioner, TH535 (DMC)

Maximum Current:
Application Specific
Operating Temperature Range:
- 55/+125° C
