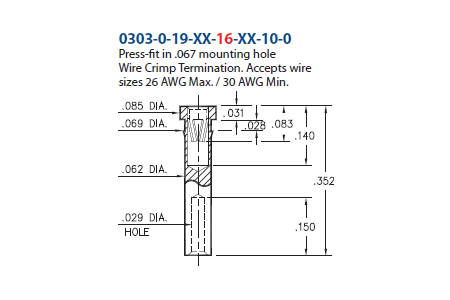

0303 Wire Termination Receptacle - Crimp Type
Overview
Description:
Wire Termination Receptacle - Crimp Type
Accepts .022"-.034" (0,559-0,864mm) diameter leads.
Wire Termination:
Crimp 26-30 AWG
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH)
Mounting Hole:
.066" (1,676mm)
Tail Type:
Crimp
Product Family:
Pin Receptacle
Mates With:
Recommended Tooling:
0303 Wire Termination Receptacle - Crimp Type
Overview
Description:
Wire Termination Receptacle - Crimp Type
Accepts .022"-.034" (0,559-0,864mm) diameter leads.
Wire Termination:
Crimp 26-30 AWG
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH)
Mounting Hole:
.066" (1,676mm)
Tail Type:
Crimp
Product Family:
Pin Receptacle
Mates With:
Recommended Tooling:
