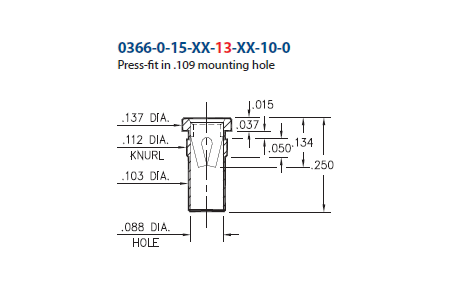

0366 Receptacle With No Tail

0366 Receptacle With No Tail

Overview

Description:

Receptacle With No Tail
Accepts .048"-.064" (1,219-1,626mm) diameter leads.
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH)
Mounting Hole:  .109" (2,769mm)
Tail Type: None

Product Family:

Pin Receptacle

Mates With:

Find mating pins

Mechanical life (Durability):
1,000 Cycles Minimum
Maximum Current:
19A @ 30⁰ C Temp. Rise
Maximum Derated Current: 15.2A
Contact Resistance: 10 mΩ Max
Operating Temperature Range:
-55/+125° C
Vibration:
No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
Shock:
No Elect. Discontinuity > 1μs @ 50g

0366 Receptacle With No Tail

Overview

Description:

Receptacle With No Tail
Accepts .048"-.064" (1,219-1,626mm) diameter leads.
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH)
Mounting Hole:  .109" (2,769mm)
Tail Type: None

Product Family:

Pin Receptacle

Mates With:

Find mating pins

Mechanical life (Durability):
1,000 Cycles Minimum
Maximum Current:
19A @ 30⁰ C Temp. Rise
Maximum Derated Current: 15.2A
Contact Resistance: 10 mΩ Max
Operating Temperature Range:
-55/+125° C
Vibration:
No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
Shock:
No Elect. Discontinuity > 1μs @ 50g
