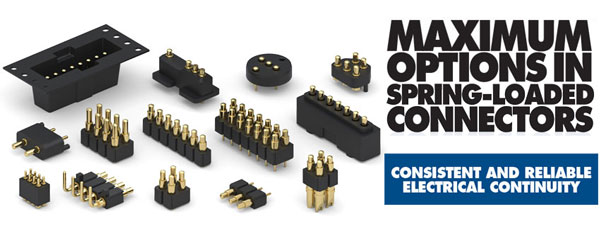

Maximum Options in Spring-Loaded Connectors

Maximum Options in Spring-Loaded Connectors

Uneven mating surfaces, floating height requirements and exposure to extreme vibration all challenge the integrity of electrical connections. Field proven for performance and reliability in harsh environments, Mill-Max spring-loaded connectors ensure continuity across a wide variety of length and stroke configurations, including new low and ultra-low pin profiles.

Use the links on the right to search our website for our varied product offering, and remember custom applications with low minimums are our specialty. Contact a technical representative today!

Choose an option below to see some of our standard offerings, or use the product finder to search all of our options.

Vertical Mount SMTVertical Mount Through-HoleHorizontal & Right AngleSolder-CupDiscrete Contacts
Surface Mount Spring LoadedThrough-Hole Spring-LoadedHorizontal HeaderSoldercup Spring-LoadedDiscrete Contacts

More Info

More Info

More Info

More Info

More Info

  • Available in .050" (1,27) or .100" (2,54mm) Pin Spacing
  • Various Strokes from .024" (0,61) to .090" (2,3)
  • Single, or Double Row Available
  • Tape & Reel option for Automated Assembly
  • Available in .050" (1,27) or .100" (2,54mm) Pin Spacing
  • Various Strokes from .039" (1,0) to .090" (2,3)
  • Single, or Double Row Available
  • 34 different heights to choose from
  • Available in .100" (2,54mm) Pin Spacing
  • Various Strokes from .055" (1,4) to .090" (2,3)
  • SMT or Through-Hole Available
  • Tape & Reel option for Automated Assembly
  • Available in .100" (2,54mm) Pin Spacing
  • Ideal for Cable Assembly Applications
  • Single, or Double Row Available
  • Tape & Reel option for Automated Assembly
  • 1,000,000 Cycles
  • Available in 88 Heights
  • Continuous 2A, 3A Peak
  • 20 mΩ Max resistance
  • Tape & Reel option for Automated Assembly

Want to search more options? Try our product finder.
